Products Workpieceholding VPC (Vise Power Clamp) Base plate 176 x 230 mm universal
ER-155220

Base plate 176 x 230 mm universal

for VPC Chuck 52 & 96

Technical data

Technical data for Base plate 176 x 230 mm universal
Compatible chucks VPC Chuck 52 | VPC Chuck 96
Product Family VPC (Vise Power Clamp)
Product Category Accessories
Technologies
Chip-removing processes
Chip-removing processes
Applications
Operate with compressed air jet
Operate with compressed air jet
Operate using the manual control unit
Operate using the manual control unit
Operate using the electropneumatic control unit
Operate using the electropneumatic control unit

product.technical-data.title

Description

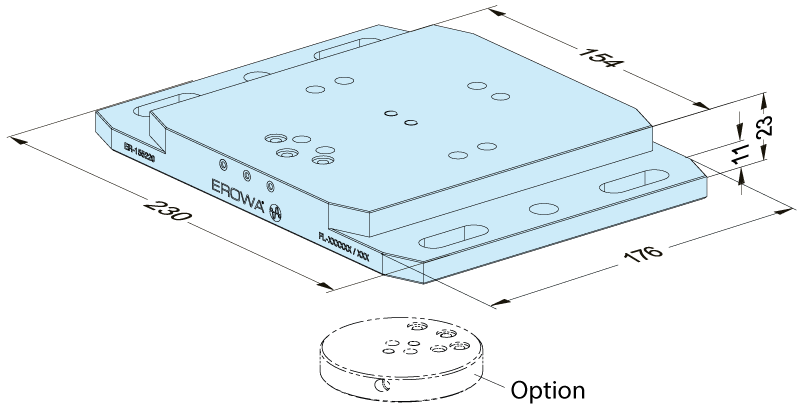

Height 23 mm; steel, unhardened. Including attachment components for VPC Chuck.
Mounting Interface
As interface between VPC Chucks 52 & 96 and the machine table.
Installation
Attachment bore pattern for 50mm grid/M12 and for machine tables with T-slot distances of 50/63/80/100mm (bolts and T-nuts are not included in the package).
Options
Chuck control possible from below with the corresponding adapter (on request).
