Linear Slide 5X Stamp

CleverClamp

Technical data

Technical data for Linear Slide 5X Stamp
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

product.hero.technical-features.title

product.downloads.title

User Manual

product.technical-data.title

Description

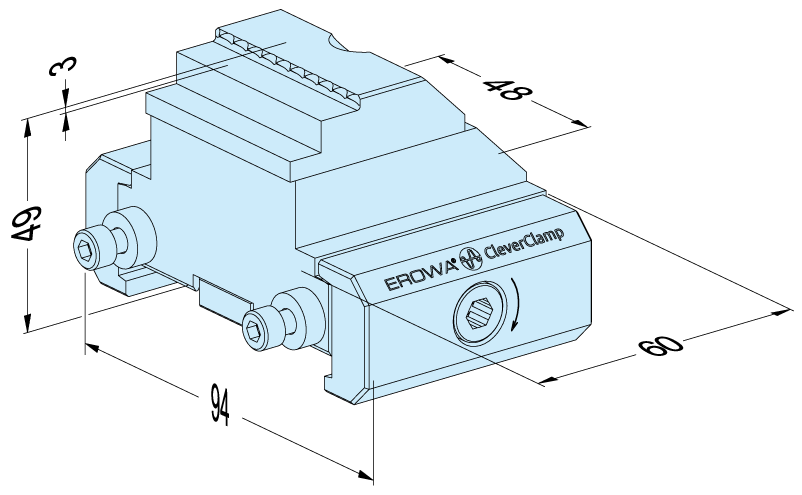

Steel, hardened, width48mm, height 49mm, clamping side with stamp contours.

Mounting Interface

Optimised machine spindle accessibility for 5-axis applications. Ideal for clamping blanks at a minimum clamping height of 3mm. Secure grip thanks to stamp technology for direct stamping.

Assembly

On CleverClamp rail.

Important

Modularly compatible with all linear jaws. Can be used for single and multiple fixtures.

Clamping Force

Up to 16kN max. with a torque of 40Nm max.

Clamping Stroke

Up to 5mm.
