Linear Slide Multi Flat

CleverClamp

ER-099285

CleverClamp

product-details.hero.technical-data
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

product.hero.technical-features.title

product.downloads.title

product.downloads.filename

Version

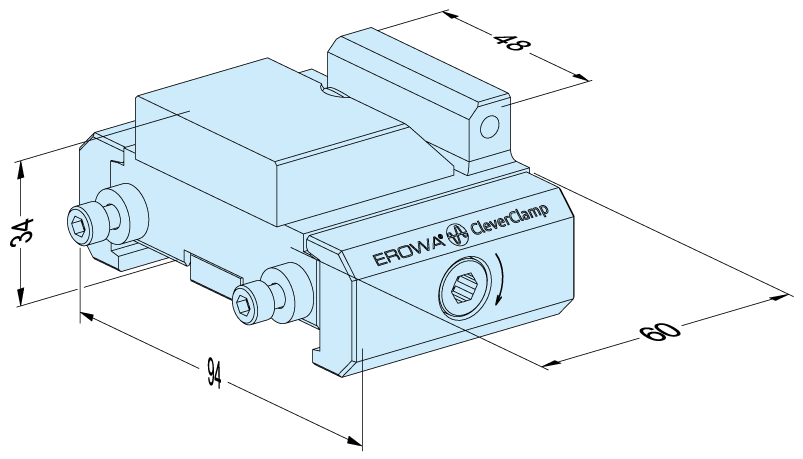

Steel, hardened, width 48mm, height 34mm, clamping and stop sides smooth.

Application

For the linear clamping of workpieces with machined surfaces.

Mounting

On CleverClamp rail.

Important

Modularly compatible with all linear jaws. Suitable for single and multiple fixtures.

Clamping force

Up to 16kN max. with a torque of 40Nm max.

Clamping stroke

Up to 5mm.
