Linear Slide Multi Grip

CleverClamp

ER-099286

CleverClamp

product-details.hero.technical-data
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

product.hero.technical-features.title

product.downloads.title

product.downloads.filename

Version

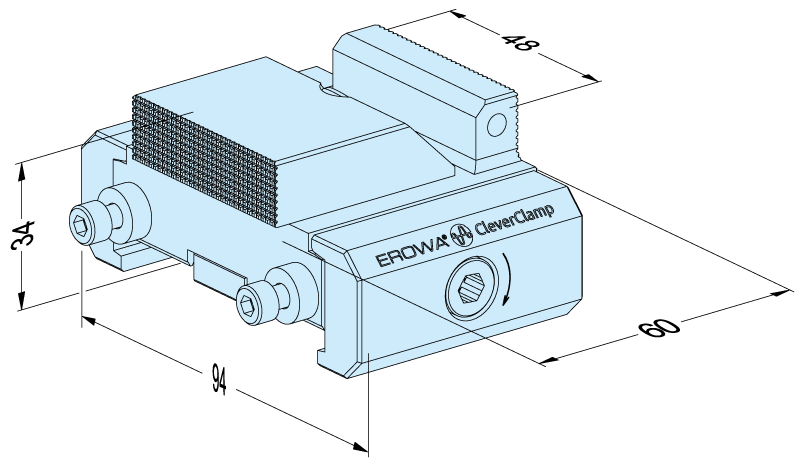

Steel, hardened, width 48mm, height 34mm, clamping and stop sides with grip contours.

Application

Linear clamping with grip contours for additional purchase.

Mountaing

On CleverClamp rail.

Important

Modularly compatible with all linear jaws. Suitable for single and multiple fixtures.

Clamping force

Up to 16kN max. with a torque of 40Nm max.

Clamping stroke

Up to 5mm.
