Linear Slide Multi Stamp

CleverClamp

Technical data

Technical data for Linear Slide Multi Stamp
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

product.hero.technical-features.title

product.downloads.title

User Manual

product.technical-data.title

Description

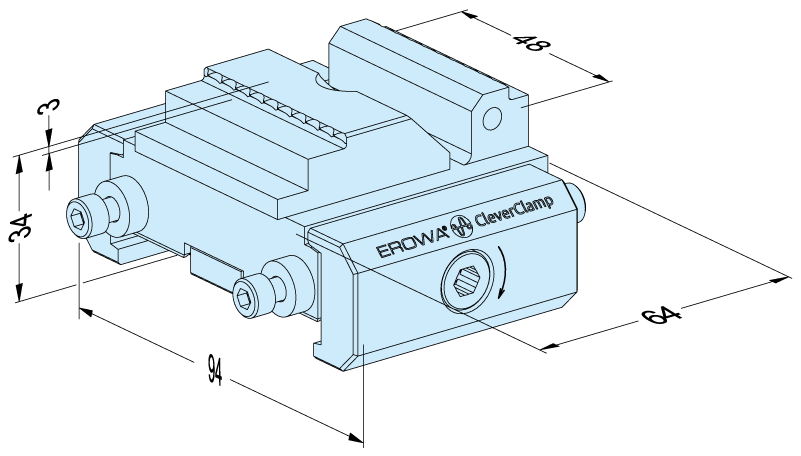

Steel, hardened, width 48mm, height 34mm, clamping and stop sides with stamp contours

Mounting Interface

Ideal for clamping blanks at the minimum clamping height of 3mm. Secure grip thanks to stamp technology for direct stamping. Can also be used for two-side machining.

Assembly

On CleverClamp rail.

Important

Modularly compatible with all linear jaws. Suitable for single and mutliple fixtures.

Clamping Force

Up to 16kN max. with a torque of 40Nm max.

Clamping Stroke

Up to 5mm.
