Linear Slide Multi Stamp Wide

CleverClamp

Technical data

Technical data for Linear Slide Multi Stamp Wide
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

product.hero.technical-features.title

product.downloads.title

User Manual

product.technical-data.title

Description

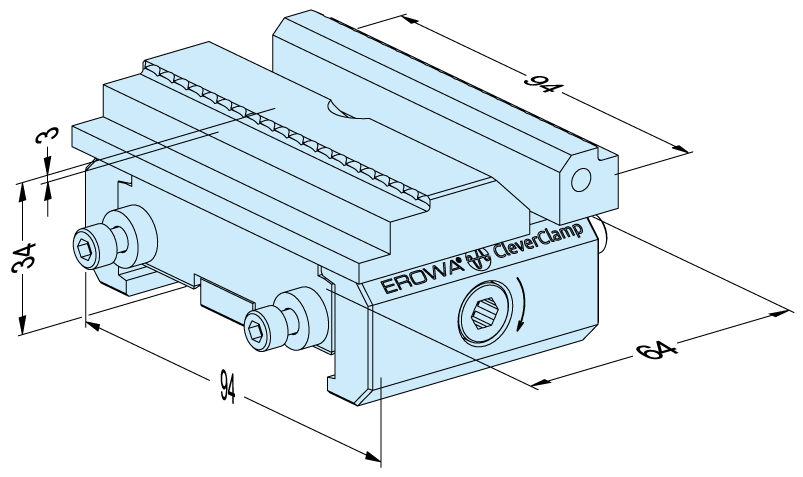

Steel, hardened, width 94mm, height 34mm, clamping and stop sides with stamp contours.

Mounting Interface

Ideal for clamping blanks at a minimum clamping height of 3mm. Secure grip thanks to stamp technology for direct stamping. Can also be used for two-side machining.

Assembly

On CleverClamp rail.

Important

Modularly compatible with all linear jaws. Suitable for single and multiple fixtures.

Clamping Force

Up to 16kN max. with a torque of 40Nm max.

Clamping Stroke

Up to 5mm.
