Pull Down Slide Multi Flat

CleverClamp

ER-099292

Pull Down Slide Multi Flat

CleverClamp

product-details.hero.technical-data
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

product.hero.technical-features.title

product.downloads.title

product.downloads.filename

product.technical-data.title

Version

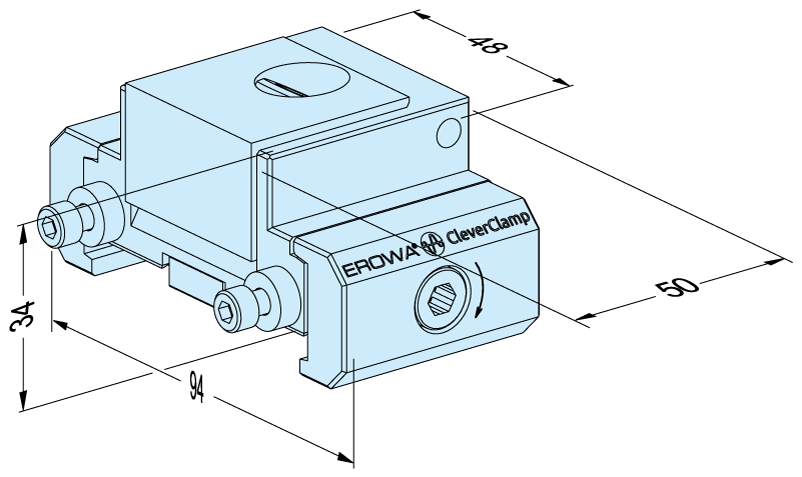

Steel, hardened, width 48mm, height 34mm, clamping and stop sides smooth.

Application

Pull-down element for clamping jobs with high clamping forces. Surface: smooth. Ideal for two-side machining and for clamping workpieces with machined surfaces.

Mounting

On a CleverClamp rail.

Important

Suitable for single or multiple fixtures.

Clamping force

Up to 28kN max. at a torque of 40Nm max.

Clamping stroke

Up to 4.1mm.
