Pull Down Slide Multi Grip

CleverClamp

ER-099298

CleverClamp

product-details.hero.technical-data
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

product.hero.technical-features.title

product.downloads.title

product.downloads.filename

Version

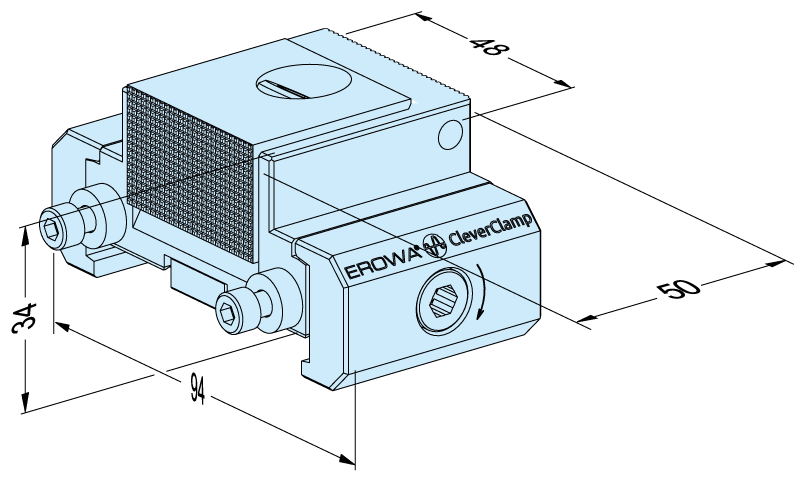

Steel, hardened, width 48mm, height 34mm, clamping and stop sides with grip contours.

Application

Pull-down element for clamping jobs with high clamping forces. Surface with grip contours for additional purchase.

Mounting

On CleverClamp rail.

Important

Suitable for single or multiple fixtures.

Clamping force

Up to 28kN max. with a torque of 40Nm max.

Clamping stroke

Up to 4.1mm.
