Rail 218 H35

CleverClamp

ER-099331

CleverClamp

product-details.hero.technical-data
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

product.hero.technical-features.title

product.hero.applications.title

product.downloads.title

product.downloads.filename

Version

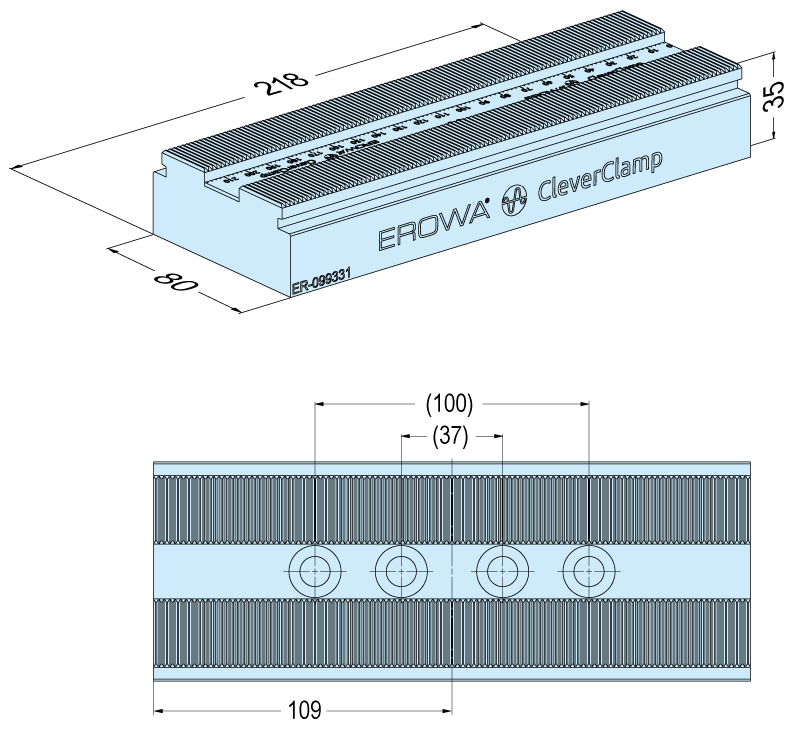

Steel, hardened. Clamping element carrier, length 218mm, height 35mm, with 2mm positioning grid.

Application

Serves as a Basis to clamp workpieces with various CleverClamp clamping and stop elements.

To fit

To fit on grid plates R50, pallets, tombstones and machine tables. 4x M10 x35 socket head bolts.

Accessories

Clamping and stop elements, etc.

Note

Can be fitted directly to pallet P ø 148 Inox (ER-041912).
