Rail 320 H60 manual

CleverClamp

Technical data

Technical data for Rail 320 H60 manual
Optional accessories	Clamping jaws in various designs \| Underlays at different heights
Product Category	Workpiece Clamp
Technologies	EDM sinking Chip-removing processes
Applications	Manual Operation

User Manual

Description

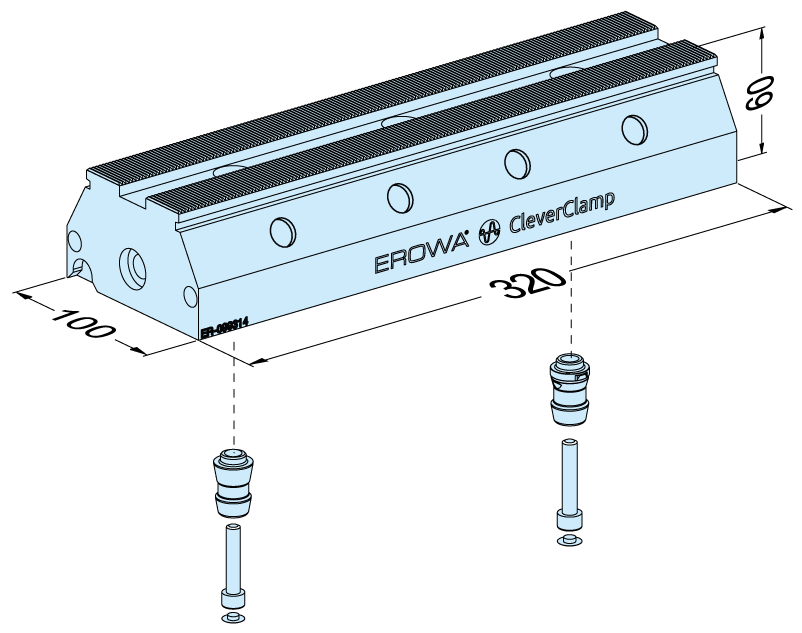

Steel, hardened. H60 clamping element carrier with 2mm positioning grid. With MTS spigot, manual.

Operation

Manual application on MTS81 base plates with 120mm set-up distance and MTS base plates with 200m set-up distance.

Mounting Interface

Serves as a base to clamp workpieces with various CleverClamp clamping and stop elements.

Accessories

Clamping and stop elements, etc.

Note

Manual application.
