Rail 320 H60

CleverClamp

Technical data

Technical data for Rail 320 H60
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

product.hero.technical-features.title

product.hero.applications.title

User Manual

Description

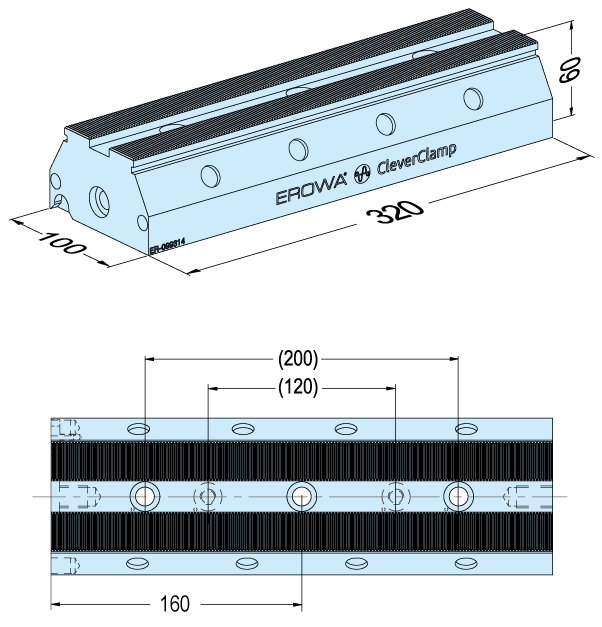

Steel, hardened. H60 clamping element carrier with 2mm positioning grid.

Mounting Interface

Serves as a base to clamp workpieces with various CleverClamp clamping and stop elements.

Assembly

To mount on R50 grid plates, pallets, tombstones and machine tables

Accessories

Clamping and stop elements, etc.

Important

Can be used directly with a spigot on MTS, 200mm set-up distance (M) or MTS81, 120mm set-up distance (A/M).
