Products Workpieceholding CleverClamp & ClampSet Rail 398 H80 automated
ER-099390

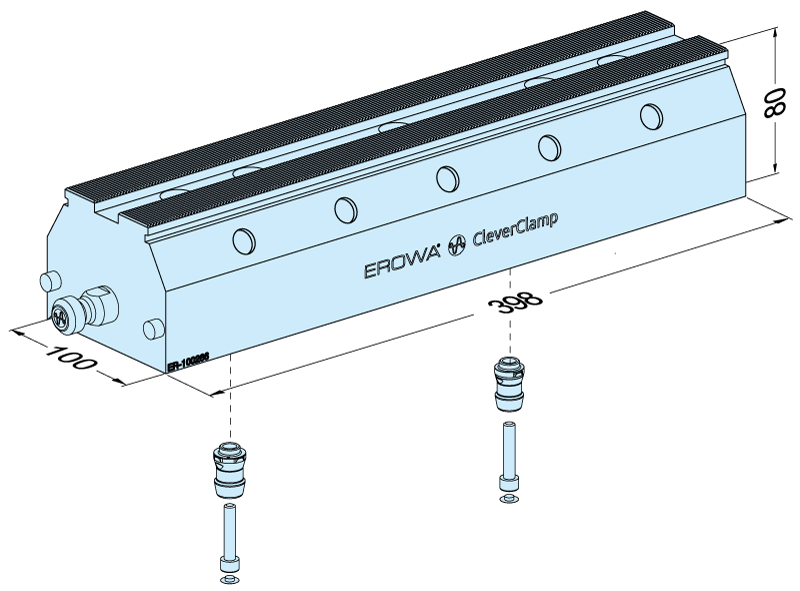

Rail 398 H80 automated

CleverClamp

Technical data

Technical data for Rail 398 H80 automated
Optional accessories Clamping jaws in various designs | Underlays at different heights
Product Category Workpiece Clamp
Technologies
EDM sinking
EDM sinking
Chip-removing processes
Chip-removing processes
Applications
Manual Operation
Manual Operation
Suitable for automated use
Suitable for automated use
Gripper RCS
Gripper RCS

product.downloads.title

User Manual

product.technical-data.title

Description
Steel, hardened. H80 clamping element carrier with 2mm positioning grid. With MTS spigot, automatic, and GripperLink.
Operation
Automated application of MTS base plates with 200/250mm set-up distance.
Mounting Interface
Serves as a base to clamp workpieces with various CleverClamp clamping and stop elements.
Accessories
Clamping and stop elements, etc.
Note
Automated application.
