Stop 5X Stamp

CleverClamp

Technical data

Technical data for Stop 5X Stamp
Optional accessories	Clamping jaws in various designs \| Underlays at different heights
Product Category	Accessories
Technologies	EDM sinking Chip-removing processes

product.downloads.title

User Manual

product.technical-data.title

Description

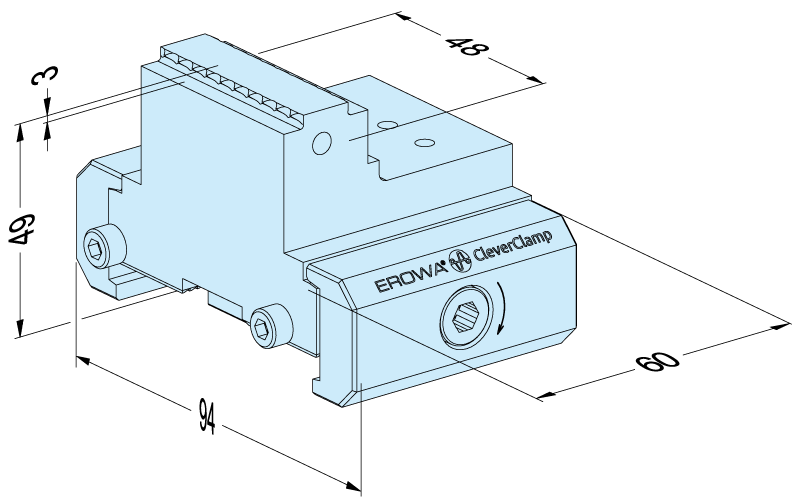

Steel, hardened, width 48mm, height 49 mm, with stamp contours.

Mounting Interface

Stop element in the modular CleverClamp system. Stop element with better machine spindle accessiblity for 5-axis applications. With stamp contours, ideal in combination with stamp clamping elements for clamping blanks at a minimum clamping height of 3mm.

Installation

On CleverClamp rail.
