Support 34 Wide

CleverClamp

Technical data

Technical data for Support 34 Wide
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

product.hero.technical-features.title

User Manual

Description

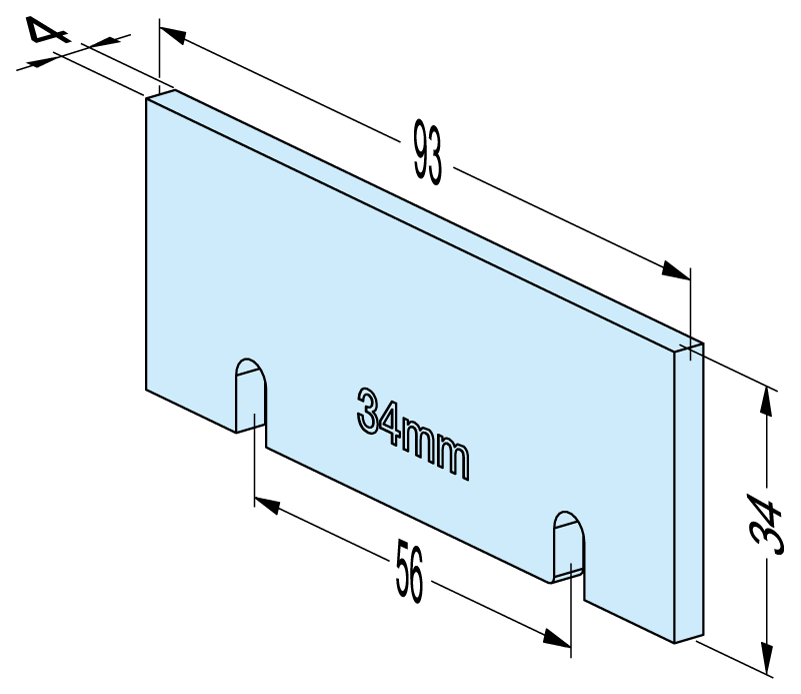

Steel, hardened, width 93mm, height 34mm.

Mounting Interface

Ground support for setting the workpiece clamping height between the CleverClamp clamping and stop elements.

Important

Supports with the heights 34, 39, 44 and 46 can only be used in combination with the 5-axis clamping and stop elements.
