Twin Pull Down Slide Multi Grip

CleverClamp

Technical data

Technical data for Twin Pull Down Slide Multi Grip
Optional accessories	Clamping jaws in various designs \| Underlays at different heights

product.hero.technical-features.title

Description

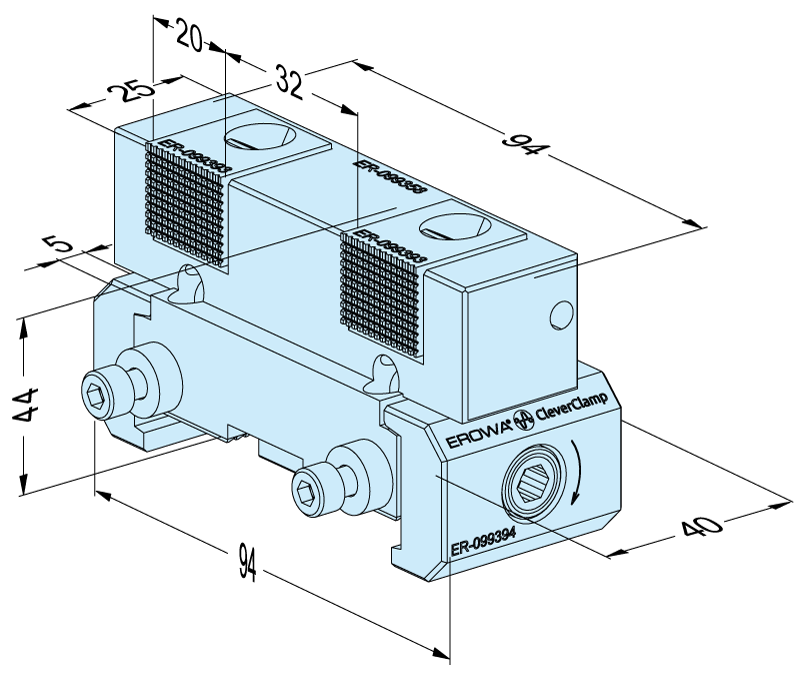

Steel, hardened; width 94mm,height 44mm; clamping side with grip / stop side with grooved contours.

Mounting Interface

Stop element in the modular CleverClamp system. In combination with the stop element (ER-099332).

Assembly

On CleverClamp rail.

Important

Suitable for single or multiple clamping.

Clamping Force

Up to max. 10 kN with max. 10 Nm tightening torque (per jaw).

Clamping Stroke

Up to 3.3 mm.
