Products Workpieceholding WEDM WEDM clamping rail 320
ER-174690

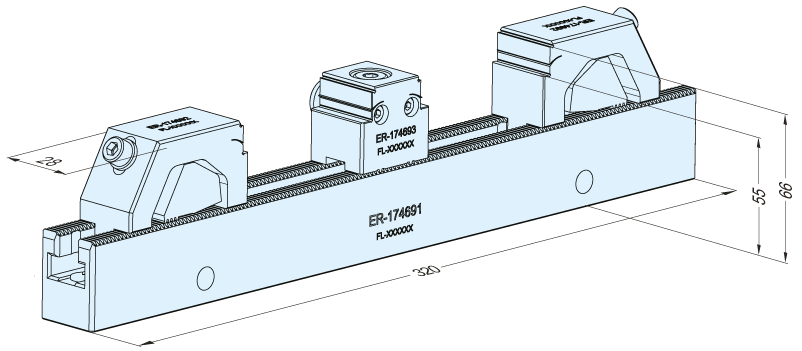

WEDM clamping rail 320

with sliding jaw B28, ecoLine

Technical data

Technical data for WEDM clamping rail 320
Product Family Wire EDM Tooling
Product Category Chuck
Technologies
WEDM
WEDM
Applications
Manual Operation
Manual Operation
Suited for submerged operation
Suited for submerged operation
Corrosion-resistant material
Corrosion-resistant material

product.technical-data.title

Mounting Interface
The WEDM clamping rail is equipped with a lamellar pull-down system and a quickly adjustable clamping slide. With the help of the base strips or the two mounting holes (ø 9 D200), the clamping rail can be clamped horizontally in the wire EDM machine.
Clamping Range
2x 0-88 mm or 1x 0-230 mm.
