Die-plate pallet PM128 ø 84.5 Precise

1 piece

product-details.hero.technical-data

product-details.hero.technical-data for Die-plate pallet PM128 ø 84.5 Precise
Product Family	PM Tooling (Powder Metallurgy)
Product Category	Pallets, spigots
Technologies	EDM sinking WEDM Chip-removing processes
Applications	With central flushing clearance Corrosion-resistant material

product.downloads.title

User Manual

product.technical-data.title

Description

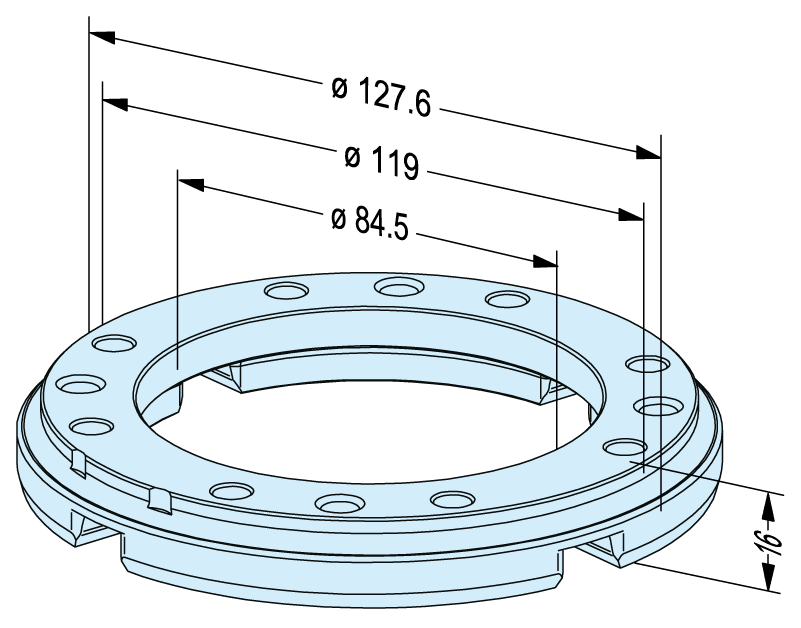

Steel, hardened, corrosion-resistant. Centering integrated in pallet. Inside ø 84.5 mm.

Mounting Interface

For use on die-plate chuck PM128 Precise. To accommodate die plates, workpieces and fixtures for chip-cutting machines, EDM/WEDM centers and powder presses.

Mounting

Through the pallet with M6 bolts or through the workpiece with M8 bolts.
