Products Workpieceholding WEDM Extension arm Z-Vario
ER-038711

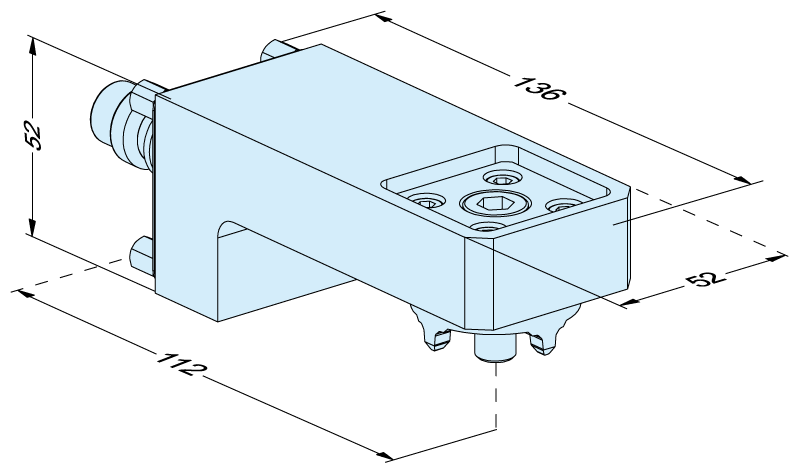

Extension arm Z-Vario

PalletSet W / UnoSet

product-details.hero.technical-data

product-details.hero.technical-data for Extension arm Z-Vario
Repeatability < 0.002 mm
Product Family Wire EDM Tooling
Product Category Accessories
Technologies
WEDM
WEDM
Applications
Manual Operation
Manual Operation
Corrosion-resistant material
Corrosion-resistant material

product.downloads.title

User Manual

product.technical-data.title

Description
Extension arm with centering system connection to ITS 50. Accommodates workpieces and electrodes.
Mounting Interface
Accommodation of workpieces and electrodes for machining in a horizontal or vertical position.
Max. Load Capacity
Max. 6 kg
Note
Can be used in combination with adapter Z-Vario PSW/UnoSet. Indexation around 4x90°.
