Products EROWA Robot Leonardo EROWA Robot Leonardo ECU300
ER-136000

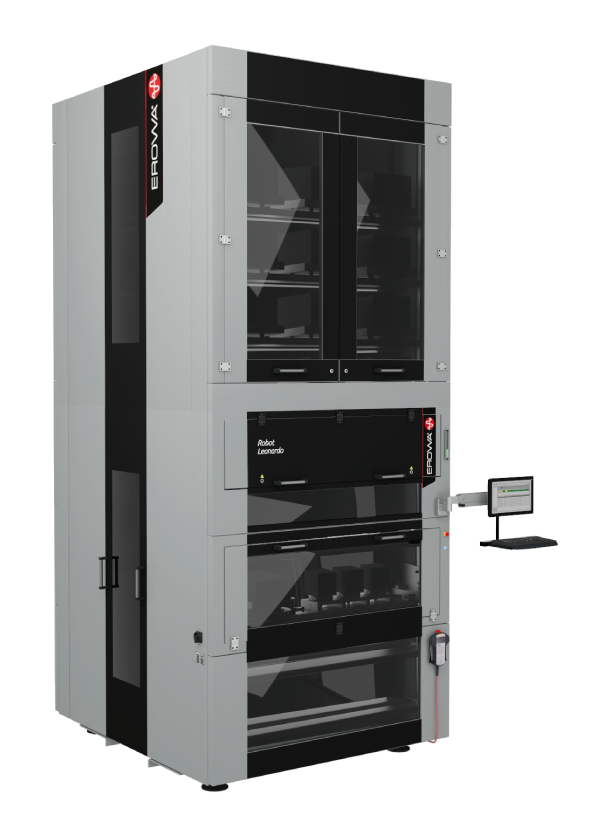

EROWA Robot Leonardo ECU300

ERL

product-details.hero.technical-data

product-details.hero.technical-data for EROWA Robot Leonardo ECU300
Automatic gripper change Yes
Robot footprint 1910 x 1822 mm
Robot height 4868 mm
Max. number of machines 2
Max. transfer weight 120 kg
Max. workpiece size (incl. pallet) 480 x 480 x 400 mm
Technologies
Chip-removing processes
Chip-removing processes
Applications
Suitable for automated use
Suitable for automated use
Gripper 148
Gripper 148
Gripper 210
Gripper 210
Gripper RCS
Gripper RCS

product.downloads.title

EROWA Leonardo DE Brochure EROWA Leonardo EN Brochure EROWA Leonardo FR Brochure EROWA Leonardo IT Brochure

product.technical-data.title

Mounting Interface
For milling, grinding processes, as well as measurement applications. Suitable for single- and dual-machine solutions.
Workpiece Identification
Automatic workpiece identification (EWIS) ensures reliable processes and reduces operator errors during unmanned operation.
Operation
Ergonomic loading and unloading via the loading station. Optional with a rotary table for free access to the workpieces.
Compatibility
ITS 115/148 / PC 210 / UPC / MTS 400/500
Description
Also available in a taller version for increased storage capacity and higher productivity.
