Products Workpieceholding WEDM Angle clamping unit UnoSet
ER-028471

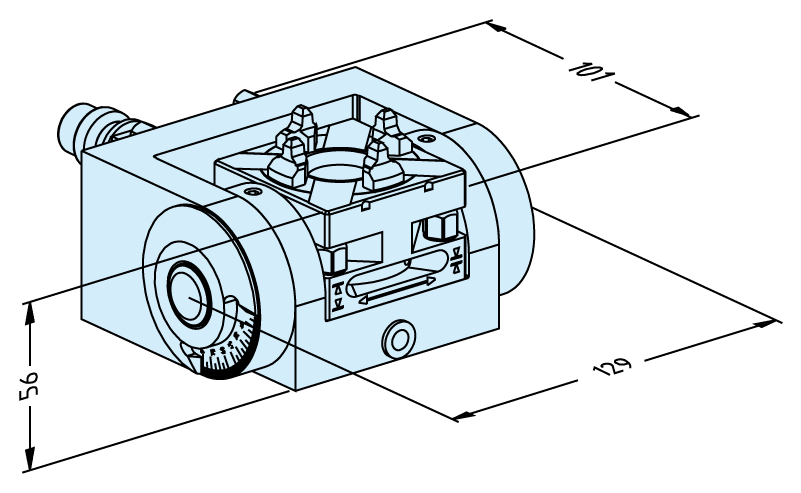

Angle clamping unit UnoSet

QuickChuck 50

product-details.hero.technical-data

product-details.hero.technical-data for Angle clamping unit UnoSet
Indexing 4 x 90°
Repeatability < 0.002 mm
Product Family Wire EDM Tooling
Product Category Chuck
Technologies
EDM sinking
EDM sinking
WEDM
WEDM
Applications
Manual Operation
Manual Operation
With central flushing clearance
With central flushing clearance
Corrosion-resistant material
Corrosion-resistant material

product.downloads.title

User Manual

product.technical-data.title

Description
Chuck 50, angle to be set with the vernier.
Mounting Interface
WEDM or EDM. To fit lateral sprues to casting tools.
Max. Load Capacity
6 kg.
Max. Workpiece Size
100 x 100 x 100 mm.
Connections
Flushing connection in place.
