Products Workpieceholding MTS (Modular Tooling System) MTS chucking spigot set 4/ A-Z-FD Type 1

ER-171025

MTS chucking spigot set 4/ A-Z-FD Type 1

Fastening from below with spec. M12 bolt

product-details.hero.technical-data

product-details.hero.technical-data for MTS chucking spigot set 4/ A-Z-FD Type 1
Holding force	min. 90'000 N/ IntegralChuck
Compatible chucks	MTS \| MTS 2.0 \| MTS 3.0 \| MTS 4.0 \| MTS 81
Workpiece identification	EWIS™ Rapid
Note	Only compatible with MTS FD components, not with MTS standard components.
Product Family	MTS (Modular Tooling System)
Product Category	Pallets, spigots
Technologies	EDM sinking Chip-removing processes
Applications	Manual Operation Suitable for automated use

product.downloads.title

User Manual

product.technical-data.title

Mounting Interface

Primarily for rotary applications such as mill-turn machining and 5-axis machining.

Description

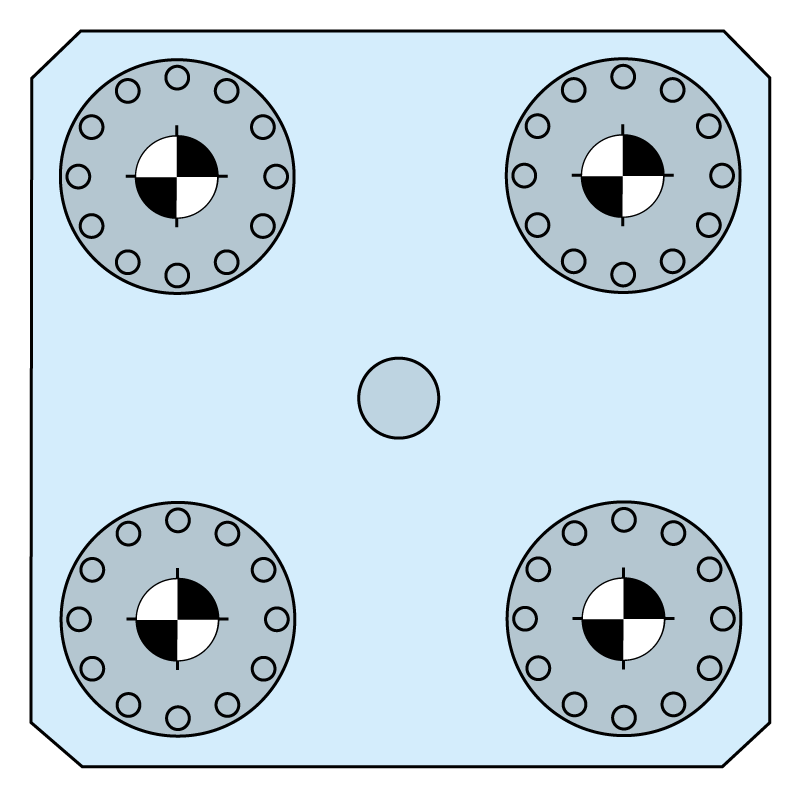

4x MTS centering spigots A-Z-FD, including special bolt

Installation

On the underside of the pallet - no fastening possible from above through the pallet.

Note

The centering spigots FD can be used with pallets FD with MTS 2.0, MTS 3.0 and MTS 4.0.
